Deflection head details are specialized components used in wall and partition systems to accommodate vertical or horizontal movement in a building’s structure.
They are typically placed at the top of walls, allowing the structure to expand, contract, or shift without compromising the wall’s integrity or performance.\
This movement can be caused by various factors, such as dead loads, live loads, thermal expansion, or seismic activity. At KOROK Building Systems, our deflection head solutions are designed to provide the flexibility and stability needed in high-performance wall systems.
Dead and live loads can cause significant deflection in some structures. KOROK® can provide deflection C-track details where deflection loadings are considered.
KOROK deflection head details:
Maintain Structural Integrity: Designed to allow movement in walls without damaging the structure, these details help prevent cracking or separation in response to building movement.
Ensure Fire and Acoustic Performance:KOROK deflection heads are rigorously tested to retain fire resistance and acoustic ratings, even with movement, maintaining protection in all conditions.
Seismic Readiness: In New Zealand, where seismic activity can impact building structures, our deflection head designs are engineered to absorb and adjust to seismic forces, supporting safe and resilient structures.
Whether used in commercial or residential projects, KOROK’s deflection head details meet the highest industry standards, offering a reliable solution for builders, architects, and contractors who prioritize safety, performance, and durability.
KOROK has a culture of investing in product testing across our core market segments, believing in developing systems that simplify construction with robust, evidence-based performance.
As our market evolves, so does the demand for high-performance, compliant systems. KOROK continually strives to stay ahead, providing evidence-based solutions, supporting documentation, technical support, and literature to the New Zealand Construction Industry.
Our technical team, led by David Cornelius, brings a wealth of experience and a deep passion for the KOROK brand. We balance product innovation, testing, and technical support, ensuring that the industry benefits from practical, test-based solutions.
Pathway to testing:
KOROK collaborates with leading institutions such as BRANZ, Auckland University Acoustics Testing Services, CSIRO, and Warringtonfire Australia, alongside industry-leading fire and structural engineers, manufacturers, and consultants. This collaboration aims to deliver performance-based solutions that meet ever-evolving design requirements.
The testing process begins by identifying industry challenges, followed by setting objectives and the steps required to facilitate a solution. KOROK evaluates both suitability and compliance requirements while considering simple installation methodologies. A systematic evaluation of needs leads to a well-structured test program and assessments.
David and his team rigorously assess and refine processes, aiming to provide the market with simple, high-performance systems and applications that enhance both functionality and efficiency. Our goal is to ensure that every product meets the highest standards of performance and reliability.
Recent Articles
Stay in the loop
Sign-up to our newsletter to be notified of updates.
Fire rated protection of junctions between KOROK® walls and structural steel
Ensuring fire-rated protection for junctions between KOROK® wall systems and structural steel columns and beams is critical for maintaining the integrity of fire protection systems in commercial and residential buildings.
This guide provides a quick reference for builders, engineers, architects, and designers to assess, design, and install fire-rated junctions without compromising the fire protection applied to steel structures. Whether you’re working with steel columns, beams, or other structural elements, KOROK® wall systems offer reliable fire resistance and acoustic performance.
Since fire protection linings and coatings are designed to meet the specific requirements of each column, beam, and loading condition, we recommend consulting your structural engineer or fire engineer for precise junction details.
For more information on fire-rated junction systems and KOROK® fire-rated wall systems, please refer to your project’s design team or review KOROK technical literature.
Scissor Stairs – Fire and Acoustic Rated Protection
KOROK® has 2-way fire-rated wall systems for fire separation of Scissor Stairs or any Stairs.
Our innovative KOROK® Scissor Stair wall systems are BRANZ-tested and Warringtonfire-assessed, ensuring compliance with New Zealand’s fire safety standards. These systems are rated up to a Fire Resistance Rating (FRR) of -/120/120, offering robust protection for critical building areas.
Key Benefits of KOROK® Scissor Stairs Fire-Rated Wall Systems:
Two-way fire protection: Rated up to FRR -/120/120 for comprehensive fire separation.
No height limitations: KOROK® walls can be installed without restrictions on wall height, in both horizontal and vertical configurations.
Structural simplicity: No additional structural support required beyond attachment to stair landings and stair stringers.
Fast, efficient installation: Lightweight interlocking panels make installation faster and more cost-effective compared to conventional systems.
KOROK® Scissor Stairs wall systems combine fire safety, acoustic performance, and cost efficiency, making them the ideal choice for builders and developers.
KOROK® Scissor Stairs Systems cater to most common scenarios requiring fire resistance in stair configurations. These walls are constructed using 78mm thick, horizontally and/or vertically oriented KOROK® panels, designed to fit seamlessly between two independent stair stringers in scissor stairs configurations.
The systems feature self-supporting, non-load-bearing walls that can be built using horizontally or vertically stacked panels, or a combination of both. This flexibility ensures adaptability to a wide range of building designs.
Compliance with the New Zealand Building Code
KOROK® Scissor Stair Systems meet the stringent requirements of Clause C of the New Zealand Building Code (NZBC). They comply with the normative requirements for fire resistance performance as outlined in New Zealand’s acceptable solutions.
Fire Resistance Ratings (FRR)
The fire resistance ratings of KOROK® Scissor Stair Systems reach up to FRR -/120/120, depending on the span of the panels and the components selected.
Horizontal Fire Resistance: Achieved by the quadrilateral fire-resistant section between the two independent stairs.
Vertical Fire Resistance: Provided by the wall-to-stair stringer angle at the boundary connections.
For detailed configurations, refer to the technical specifications in the KOROK® Scissor Stair Systems wall type tables.

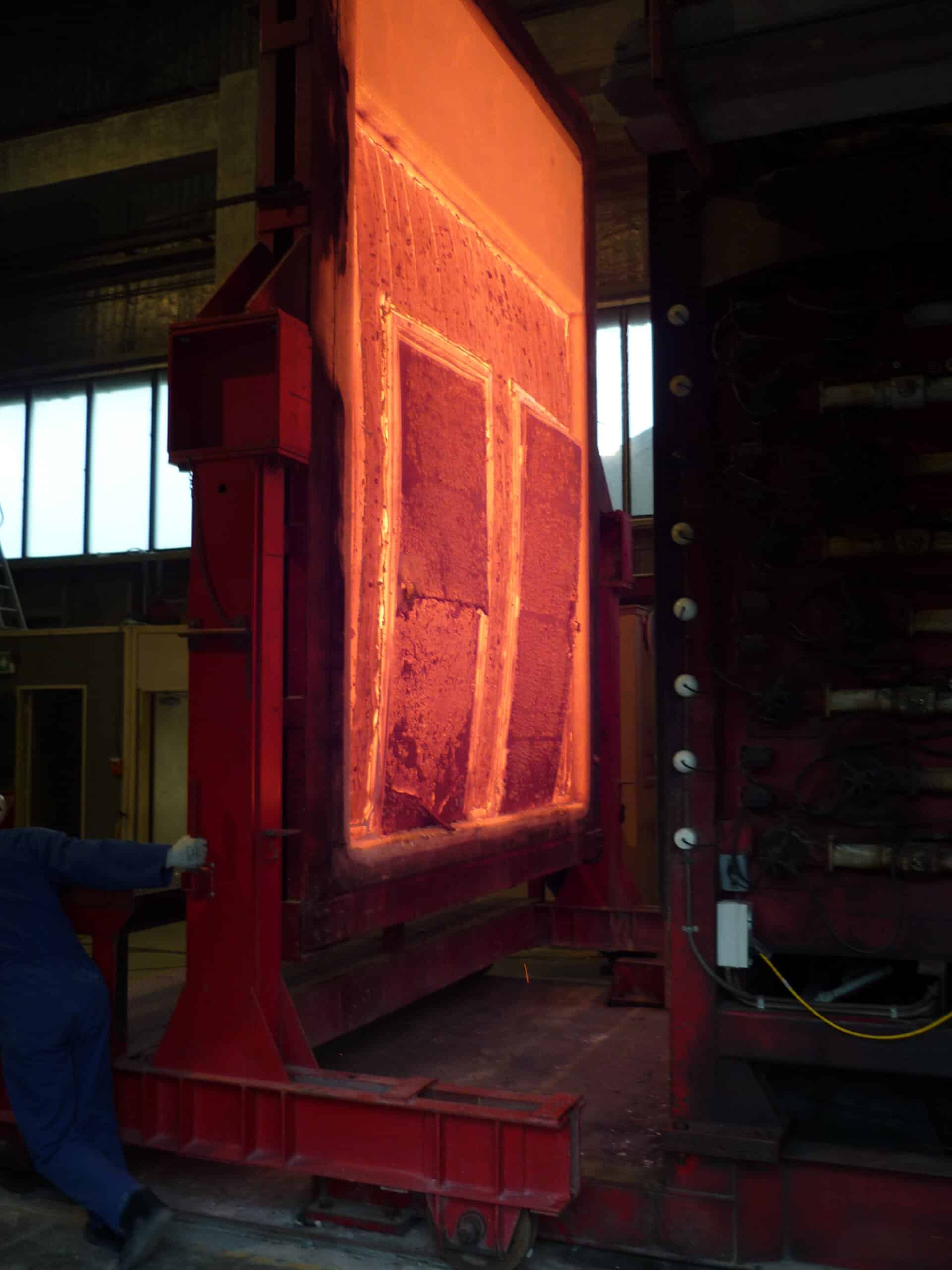

KOROK® Fire Doors – Premium Fire-Resistant Solutions for Safety and Compliance
KOROK® Building Systems NZ Ltd offers high-quality fire door solutions designed to enhance the fire safety of residential, commercial, and industrial buildings across New Zealand. Our fire doors are engineered to meet the latest fire rating and compliance standards while ensuring cost-efficiency, design flexibility, and ease of installation.
Why Choose KOROK® Fire Doors?
Superior Fire Protection: Our fire doors provide optimal fire resistance, safeguarding people and property.
Compliance Assurance: All our fire door systems are fully compliant with New Zealand Building Code (NZBC) standards.
Sustainability: We prioritize eco-friendly materials and sustainable manufacturing processes.
Trusted Fire Door Suppliers
We collaborate with reputable New Zealand fire door manufacturers to deliver top-tier products to our clients. Our trusted suppliers include:
When it comes to passive fire penetrations, KOROK® leads the way with innovative solutions that ensure fire safety without compromising functionality.
At KOROK®, we are committed to providing fire-rated wall systems that prioritize safety, durability, and performance. Our advanced KOROK® panels are specifically designed to allow seamless integration of passive fire penetrations, including service ducting and pipes, while maintaining the structural and fire integrity of the wall.
Passive fire penetrations are openings or pathways in fire-rated walls or floors that allow services such as plumbing, electrical cables, or ductwork to pass through. These penetrations are essential for building functionality but must be carefully designed to prevent the spread of fire and smoke. KOROK® panels are engineered to make the creation and sealing of these penetrations straightforward and effective, ensuring compliance with strict fire safety standards.
Why Choose KOROK® for Passive Fire Penetrations?
Easy Formations for Penetrations: KOROK® panels simplify the creation of openings for ducting and plumbing. The lightweight yet robust design makes it easy to form precise and efficient penetrations without compromising fire safety or wall integrity.
Maintained Wall Integrity: Even with multiple passive fire penetrations, KOROK® panels ensure the overall wall system retains its fire rating. This is crucial for preventing fire and smoke from spreading across compartments in a building.
Versatile Applications: Whether your project involves commercial spaces, residential apartments, or industrial facilities, KOROK® passive fire penetrations provide a reliable and efficient solution tailored to meet your needs.
Compliance with Building Codes: KOROK® panels are rigorously tested and meet or exceed New Zealand’s building code requirements for passive fire protection. This gives architects, engineers, and builders confidence in the safety and performance of their projects.
The table below contains a basic selection of tested passive fire solutions, for quick reference. For additional solutions please contact the relevant passive fire companies:
CFS-C P 50/1.5" Fire Collar + CP606 Acrylic Sealant
-/120/60
Hilti
40mm ND uPVC Pipe. Refer to pages 28-30
40mm
uPVC
CFS-C P 50/1.5" Fire Collar + CP606 Acrylic Sealant + 13mm Plasterboard Patch
-/120/90
Hilti
50mm ND uPVC Pipe. Refer to pages 28-30
50mm
uPVC
CFS-C P 63/2.0" Fire Collar + CP606 Acrylic Sealant
-/120/90
Hilti
50mm ND uPVC Pipe. Refer to pages 28-30
50mm
uPVC
CFS-C P 63/2.0" Fire Collar + CP606 Acrylic Sealant + 13mm Plasterboard Patch
-/120/120
Hilti
65mm ND uPVC Pipe. Refer to pages 28-30
65mm
uPVC
CFS-C P 75/2.5" Fire Collar + CP606 Acrylic Sealant
-/120/90
Hilti
65mm ND uPVC Pipe. Refer to pages 28-30
65mm
uPVC
CFS-C P 75/2.5" Fire Collar + CP606 Acrylic Sealant + 13mm Plasterboard Patch
-/120/120
Hilti
80mm ND uPVC Pipe. Refer to pages 28-30
80mm
uPVC
CFS-C P 90/3" Fire Collar + CP606 Acrylic Sealant
-/120/90
Hilti
80mm ND uPVC Pipe. Refer to pages 28-30
80mm
uPVC
CFS-C P 90/3" Fire Collar + CP606 Acrylic Sealant + 13mm Plasterboard Patch
-/120/120
Hilti
Cable Bundle ≤ 36mm Dia. Any combination of Telecommunication cables, Cat5/6/7/8, Fiber Optic cables,RG6 Quad Shield Coax or TPS 2C+E up to 2.5mm2. Refer to pages 13-14
Max. 36mm
Cable
CP611a / CFS-IS Intumescent Sealant
-/120/60
Hilti
Cable Bundle ≤ 36mm Dia. Any combination of Telecommunication cables, Cat5/6/7/8, Fiber Optic cables,RG6 Quad Shield Coax or TPS 2C+E up to 2.5mm2. Refer to pages 13-14
Max. 36mm
Cable
CP611a / CFS-IS Intumescent Sealant + CFS-P BA Putty Bandage
-/120/90
Hilti
Cable Tray up to 600mm Wide with 9 x 400mm2 XLPE/PVC or PVC/PVC Sheath/Insulated Single Core Copper or Aluminum Power Cables. Refer to pages 21-27
Cable
2 x Layers CP670 Coated Board + CP611a / CFS-IS Intumescent Sealant + CFS-P BA Putty Bandage
-/60/60
Hilti
Cable Tray up to 600mm Wide with AS1530.4 Standard D1 XLPE/PVC or PVC/PVC Sheath/Insulated Power Cables Cable Sets. Refer to pages 21-27
Cable
2 x Layers CP670 Coated Board + CP611a / CFS-IS Intumescent Sealant + CFS-P BA Putty Bandage
-/120/90
Hilti
Cable Tray up to 600mm Wide with AS1530.4 Standard D2 Telecommunication Cable Sets. Refer to pages 21-27
Cable
2 x Layers CP670 Coated Board + CP611a / CFS-IS Intumescent Sealant + CFS-P BA Putty Bandage
-/90/60
Hilti
Up to 10 of Quad Shield Coax Cables. Refer to pages 13-14
Cable
CP611a / CFS-IS Intumescent Sealant + CFS-P BA Putty Bandage
-/120/90
Hilti
Up to 16 of Telecommunication cables, Cat5/6/7/8 & Fiber Optic cables. Refer to pages 13-14
Cable
CP611a / CFS-IS Intumescent Sealant
-/120/90
Hilti
Up to 16 of Telecommunication cables, Cat5/6/7/8 & Fiber Optic cables. Refer to pages 13-14
Cable
CP611a / CFS-IS Intumescent Sealant + CFS-P BA Putty Bandage
-/120/120
Hilti
Up to 8 of TPS 2C+E up to 2.5mm2. Refer to pages 13-14
CP611a / CFS-IS Intumescent Sealant
-/120/60
Hilti
Up to 8 of TPS 2C+E up to 2.5mm2. Refer to pages 13-14
CP611a / CFS-IS Intumescent Sealant + CFS-P BA Putty Bandage
