KOROK® Technical Resources

Your Hub for Fire and Acoustic System Guidance

Resources for Design, Compliance, and Installation

KOROK® provides a comprehensive library of technical resources to support designers, architects, engineers, and installers in achieving compliant, high‑performance fire and acoustic wall solutions. Access detailed guidance on installation, seismic performance, noise control, junction protection, fire‑rated components, and system selection all in one place.

.vc_custom_1419253765784{background-color: rgba(0,0,0,0.3) !important;*background-color: rgb(0,0,0) !important;}
Read more
High-Performance Fire Sealants for KOROK® Wall Systems

Fire Sealant

Slide 1

KOROK® Fire Sealant

Fire-Rated Sealing Solutions for Complete System Integrity

Welcome to our comprehensive guide on KOROK Fire Sealant, an essential product for ensuring safety and integrity in building structures. Incorporating KOROK Fire Sealant into your projects ensures compliance with fire safety standards and enhances structural durability.

KOROK® Acrylic Fire Seal

KOROK® MS Fire Seal

KOROK® Acrylic Fire Seal SDS

KOROK® MS Fire Seal SDS

Sealant Application Video

Learn how to apply sealant to a KOROK wall quickly and efficiently. This step-by-step video shows the right technique to ensure a clean, professional finish that maintains the fire and acoustic performance of your wall system.

Read more
Earn CPD Points with KOROK

KOROK CPD Presentation

Slide 1

Earn CPD Points with KOROK

NZIA Approved CPD Provider

NZIA

Expand your expertise and earn CPD points with our informative presentations tailored for architects. Discover the latest innovations and products from KOROK® through our CPD Presentation, one of New Zealand’s leading brands in fire and acoustic rated wall systems. Our KOROK® CPD Presentation offers a great opportunity for learning and professional growth.

Our sessions, accredited by Te Kāhui Whaihanga New Zealand Institute of Architects, offer 10 CPD points for every hour attended.

We understand the demands of your schedule, so we’re bringing the knowledge directly to your office. Contact us today to arrange a free CPD presentation at your convenience, and take the next step in your professional development. Be sure not to miss our KOROK® CPD Presentation, supporting your journey. We look forward to it.

NZIA
BRANZ logo
Read more
Sustainability

Sustainability

Slide 1

Sustainability

Leading Sustainable Solutions for a Cleaner Future

Our Commitment to Sustainable Waste Reduction

At KOROK, we’re driven by a clear mission: to deliver high‑performance fire and acoustic wall systems while actively reducing our environmental footprint. Our commitment to sustainability is reflected in every stage of our process, from smart manufacturing to product lifecycle design. By minimising waste and maximising resource efficiency, we ensure our customers receive solutions that are both technically superior and environmentally responsible.

How KOROK Reduces Waste and Supports a Circular Future

Made to Order for Minimal Waste

Our panels are manufactured to order, ensuring every product is tailored to exact project specifications. This precision approach significantly reduces off‑cuts and eliminates unnecessary waste. Because each panel fits perfectly the first time, contractors benefit from higher efficiency, cleaner installations, and fewer disposal requirements.

Fully Reusable for Long-Term Flexibility

KOROK panels are engineered with reusability in mind. They can be disassembled and reinstalled multiple times without compromising performance—ideal for evolving commercial, warehouse, and retail environments. This adaptability not only lowers material consumption but also supports businesses seeking to reduce their environmental impact.

Fully Recyclable for a Sustainable End of Life

When a KOROK panel reaches the end of its service life, it remains part of a sustainable cycle. The system can be easily separated for recycling:

  • The concrete core is crushed and repurposed.
  • The steel casing is recycled for future use.

This closed‑loop recycling process ensures our products avoid landfill and contribute to a circular, low-waste construction ecosystem.

Environmental Product Declarations (EPDs)

We are proud to announce the completion of our Environmental Product Declarations (EPDs), a testament to our commitment to transparency and sustainability. One for our Galv panel and one for our Colour panel.

What is an EPD?

An Environmental Product Declaration (EPD) is a certified, independently verified summary of a product’s environmental impact over its entire life cycle. It evaluates:

  • The materials extracted from the earth.
  • Energy used in the production, transportation and installation.
  • The environmental impacts of using, disposing, or recycling the product.

The EPD covers a range of environmental indicators, including the potential for carbon emissions, air and water pollution, and depletion of natural resources. Based on international standards (ISO 14025 and EN 15804 for building materials), our EPD is independently verified, making it a trusted and reputable source of information. It is recognized by industries, companies, and governments, and is often specified in tender documents and contracts.

Officially Recognised

A DECLARE LABEL ANSWERS THREE QUESTIONS:

  1. Where does a product come from?
  2. What is it made of?
  3. Where does it go at the end of its life?

Declare is a transparency platform and product database that is changing the materials marketplace.

See the full details.

Read more
faq

FAQs

Frequently Asked Questions

The maximum vertical height of KOROK® panels is 9.5m

the thickness of a standard KOROK® C-Track is 1.15mm

the Maximum Unsupported Vertical Span of a 78mm KOROK® panel is 6.0m

There is a 15-year warranty from KOROK® Building Systems NZ Limited for correctly installed walls. Full details can be read here.

KOROK® panels have been used for over 20 years. You can find them in nearly every cinema in NZ (because their acoustic qualities are so good); in many high-rises around the lift shafts and stairs (because they offer such great fire protection); and between many terraced houses and apartments (for both fire and acoustic protection).

KOROK® panels are made from a galvanised steel shell, filled with aerated concrete. They are NZ-made and are fully recyclable. KOROK® panels come in two thicknesses 51mm and 78mm.

The building code requires a certain level of acoustic protection between terraced houses (STC 55). Many builders go above and beyond this and we have terraced housing systems up to STC 69. KOROK® panels are designed so that you can’t hear your neighbours and are also good at blocking lower base noise. Remember that it is used in most cinemas in New Zealand so that Avengers: Endgame doesn’t impact on A Quiet Place.

The building code requires a certain level of fire protection between terraced houses (30 minutes). Most builders go above and beyond this providing you and your property with at least an hour of fire protection.

Our systems are used in a wide range of projects, including:

  • Residential: Apartments and terraced housing
  • Commercial: Retail stores, warehouses, factories, and office buildings
  • Infrastructure: Airports, libraries, cinemas, and control towers

Check out our Case Studies for project examples.

KOROK panels provide up to a 2-hour fire rating (FRR -/120/120) depending on the system and configuration. For detailed fire rating information, visit our Technical Resources or use our System Selector tool for quick navigation.

KOROK systems are designed for fast and efficient installation. With fewer lining requirements and lightweight materials, our single-panel systems save time and reduce construction complexity. See Installation page

Yes! We’re focused on waste reduction and improving our environmental footprint. Our panels are BRANZ appraised and have Environmental Product Declarations (EPDs), ensuring transparency about our products’ lifecycle impacts. Learn more on our Sustainability Page

The System Selector is a tool that allows you to quickly find KOROK systems and download relevant CAD files in just three clicks—no login required. We value your privacy, so we don’t collect any data from your visits.

I am text block. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.dsfsfdfdsfds

Still Have Questions?

If your question isn’t listed here, our team is happy to help.

Read more
Fire Rated Protection of Junctions Between KOROK Walls and Structural Steel

Fire Rated Protection of Junctions Between KOROK Walls and Structural Steel

Fire rated protection of junctions between KOROK® walls and structural steel

Ensuring fire-rated protection for junctions between KOROK® wall systems and structural steel columns and beams is critical for maintaining the integrity of fire protection systems in commercial and residential buildings. This is important because structural steel needs proper junction protection with KOROK walls for fire safety.

This guide provides a quick reference for builders, engineers, architects, and designers to assess, design, and install fire-rated junctions without compromising the fire protection applied to steel structures. Whether you’re working with steel columns, beams, or other structural elements, KOROK® wall systems offer reliable fire resistance and acoustic performance. Steel structural elements need specialised junction protection with KOROK walls for fire safety.

Since fire protection linings and coatings are designed to meet the specific requirements of each column, beam, and loading condition, we recommend consulting your structural engineer or fire engineer for precise junction details.

For more information on fire-rated junction systems and KOROK® fire-rated wall systems, please refer to your project’s design team or review KOROK technical literature.

Download Technical Data and CAD Drawing

Read more
KOROK Fire Doors

Fire Doors

KOROK® Fire Doors

Premium Fire-Resistant Solutions for Safety and Compliance

KOROK® Building Systems NZ Ltd offers high-quality KOROK Fire Doors designed to enhance the fire safety of residential, commercial, and industrial buildings across New Zealand. These KOROK Fire Doors are engineered to meet the latest fire rating and compliance standards while ensuring cost-efficiency, design flexibility, and ease of installation.

Why Choose KOROK® Fire Doors solutions?

  • Superior Fire Protection: Our fire doors provide optimal fire resistance, safeguarding people and property.
  • Compliance Assurance: All our KOROK Fire Doors systems are fully compliant with New Zealand Building Code (NZBC) standards.
  • Sustainability: We prioritize eco-friendly materials and sustainable manufacturing processes.

Trusted Fire Door Suppliers

We collaborate with reputable New Zealand KOROK Fire Doors manufacturers to deliver top-tier products to our clients. Our trusted suppliers include:

Best Doors www.bestdoors.co.nz
B Mattson Joinery www.mattsonjoinery.co.nz
Pacific Doors www.pacificdoors.co.nz
Soteria Doors www.soteriadoors.co.nz
Hallmark Group www.hallmarkgroup.co.nz
Read more
Passive Fire Penetrations

Passive Fire Penetrations

Slide 1

KOROK® Passive Fire Penetrations

NZBC-Compliant Passive Fire Protection for KOROK® Wall Systems

Fire Stopping Guidance Documents

At KOROK®, we understand that ensuring fire safety goes beyond the wall system itself – it’s also about how penetrations and services are detailed. That’s why we’ve collaborated with leading experts in passive fire protection to develop a suite of manuals that provide fully tested, NZBC-compliant solutions for penetrations in KOROK® fire-rated wall systems.

Each manual has been developed in partnership with industry specialists and contains tested configurations, installation guidance, and compliance references, making it easier for designers, engineers, and contractors to select the right firestop solutions.

Our firestop manuals, developed with industry partners, provide tested and NZBC-compliant solutions for service penetrations in KOROK® fire-rated wall systems.

Why Choose KOROK® for Passive Fire Penetrations?

  • Easy Formations for Penetrations: KOROK® panels simplify the creation of openings for ducting and plumbing. The lightweight yet robust design makes it easy to form precise and efficient penetrations without compromising fire safety or wall integrity.
  • Maintained Wall Integrity: Even with multiple passive fire penetrations, KOROK® panels ensure the overall wall system retains its fire rating. This is crucial for preventing fire and smoke from spreading across compartments in a building.
  • Versatile Applications: Whether your project involves commercial spaces, residential apartments, or industrial facilities, KOROK® passive fire penetrations provide a reliable and efficient solution tailored to meet your needs.
  • Compliance with Building Codes: KOROK® panels are rigorously tested and meet or exceed New Zealand’s building code requirements for passive fire protection. This gives architects, engineers, and builders confidence in the safety and performance of their projects.

When it comes to passive fire penetrations, KOROK® leads the way with innovative solutions that ensure fire safety without compromising functionality.

At KOROK®, we are committed to providing fire-rated wall systems that prioritize safety, durability, and performance. Our advanced KOROK® panels are specifically designed to allow seamless integration of passive fire penetrations, including service ducting and pipes, while maintaining the structural and fire integrity of the wall.

What Are Passive Fire Penetrations?

Passive fire penetrations are openings or pathways in fire-rated walls or floors that allow services such as plumbing, electrical cables, or ductwork to pass through. These penetrations are essential for building functionality but must be carefully designed to prevent the spread of fire and smoke. KOROK® panels are engineered to make the creation and sealing of these penetrations straightforward and effective, ensuring compliance with strict fire safety standards.

Service Penetrations – KOROK® 51mm & 78mm Panel

MANUFACTURERPENETRATION DESCRIPTIONSIZESUBTYPESYSTEMFRR51MM PANEL DRAWING78MM PANEL DRAWING
Promat¼” & ½” PE insulated pair coil and power cableCableFCW50-/90/60<a
<a
Promat1 of 2.5 mm² TPS cable2.5mmCablePromaseal A Sealant-/90/60<a
<a
Promat100 mm PE pipe100mmPE / PEXFCW100-/90/60<a
<a
Promat100 mm uPVC pipe100mmuPVCFCW100-/90/60<a
<a

Promat19 mm copper pipe with 13 mm Armaflex insulation19mmCopper pipeFlexiwrap-/90/30
Promat20 mm PEX20mmPE / PEXCFC32-/90/60<a
<a
Promat40 mm PE pipe40mmPE / PEXFCW40-/90/60<a

<a

Promat40 mm uPVC pipe40mmuPVCFCW40-/90/60<a
<a
Promat50 mm copper pipe50mmCopper pipeSupawrap 40-/90/60<a
<a
Promat50 mm uPVC pipe50mmuPVCFCW50-/90/60<a

<a

PromatUp to 3 of CAT6 data cablesCablePromaseal A Sealant-/90/60<a

<a

PromatUp to 4 of 2.5 mm² TPS cablesCablePromaseal A Sealant-/90/60<a

<a
PromatUp to 4 x 2.5 mm² TPS cable in a 30 mm flexible uPVC conduituPVC, CableDouble CFC32-/90/60<a
<a
PromatUp to 800mm x 400mm (0.32m²) openingOpeningPromat double bulkhead-/90/60<a
<a
PromatUp to 800mm x 400mm (0.32m²) opening with continuous cable trayCablePromat double bulkhead-/90/60<a
<a
Ryanfire150 mm uPVC pipe150mmuPVC2 of Ryanfire SL160 collars-/90/60
Ryanfire50 mm uPVC pipe50mmuPVC2 of Ryanfire SL55 collars-/90/60
RyanfireA combination of up to 3 of 3/8” & 3/4” PE insulated pair coil + 6 of 2.5 mm² TPS cables + 25mm diameter uPVC conduituPVC, Cable2 of Ryanfire SL110 collars-/90/30
RyanfireA combination of up to 30 of 2.5mm² TPS cables + 25 of CAT6 cables + 10 of 50pr telecommunications cablesCable2 of Ryanfire SL110 collars-/90/60
RyanfireUp to 700mm x 400mm (0.28m²) openingOpeningRyanfire double Firetherm Intubatt-/90/60
Holyoake
Holyoake
Hilti1 of Multi-Core Copper Cables PVC/PVC & XLPE/PVC (sheath/insulation) circular or flat 2C+E or 3C+E up to 25mm2 ≤ 23mm Dia. Refer to page 11Max. 23mmCableCP611a / CFS-IS Intumescent Sealant-/120/60
Hilti1 of Multi-Core Copper Cables PVC/PVC & XLPE/PVC (sheath/insulation) circular or flat 2C+E or 3C+E up to 25mm2 ≤ 23mm Dia. Refer to page 12Max. 23mmCableCP611a / CFS-IS Intumescent Sealant + 13mm Plasterboard Patch-/120/90
Hilti1 of single core copper cable PVC/PVC & XLPE/PVC (sheath/insulation) circular cables up to 25mm2 ≤ 10mm Dia. Refer to page 11Max. 10mmCableCP611a / CFS-IS Intumescent Sealant-/120/90
Hilti1 of single core copper cable PVC/PVC & XLPE/PVC (sheath/insulation) circular cables up to 25mm2 ≤ 10mm Dia. Refer to page 12Max. 10mmCableCP611a / CFS-IS Intumescent Sealant + 13mm Plasterboard Patch-/120/120
Hilti1 of Telecommunication cables, Cat5/6/7/8, RG6 Coax Cables & Fiber Optic cables. Refer to page 11CableCP611a / CFS-IS Intumescent Sealant-/120/90
Hilti1 of Telecommunication cables, Cat5/6/7/8, RG6 Coax Cables & Fiber Optic cables. Refer to page 12CableCP611a / CFS-IS Intumescent Sealant + 13mm Plasterboard Patch-/120/120
Hilti110mm ND uPVC-SC Pipe . Refer to pages 28-30110mmuPVCCFS-C P 110/4" Fire Collar+ CP606 Acrylic Sealant-/120/60
Hilti110mm ND uPVC-SC Pipe . Refer to pages 28-30110mmuPVCCFS-C P 110/4" Fire Collar+ CP606 Acrylic Sealant + 13mm Plasterboard Patch-/120/90
Hilti150mm ND uPVC-SC Pipe . Refer to pages 28-30150mmuPVCCFS-C P 160/6" Fire Collar+ CP606 Acrylic Sealant-/120/60
Hilti150mm ND uPVC-SC Pipe . Refer to pages 28-30150mmuPVCCFS-C P 160/6" Fire Collar+ CP606 Acrylic Sealant + 13mm Plasterboard Patch-/120/90
Hilti16 - 200mm Dia. Copper, Ferrous (Steel, Stainless Steel, Iron) or Brass Pipe with Mineral Stone Wool Insulation. Refer to pages 34-37Max. 200mmBattsCP606 Acrylic Sealant + 1 x 13mm Plasterboard Patch + Mineral Wool Pipe Sleeve (Fibertex 450) 600mm in length-/120/30
Hilti16 - 200mm Dia. Copper, Ferrous (Steel, Stainless Steel, Iron) or Brass Pipe with Mineral Stone Wool Insulation. Refer to pages 34-37Max. 200mmBattsCP606 Acrylic Sealant + 1 x 13mm Plasterboard Patch + Mineral Wool Pipe Sleeve (Fibertex 450) 600mm in length-/120/60
Hilti16 - 200mm Dia. Copper, Ferrous (Steel, Stainless Steel, Iron) or Brass Pipe with Mineral Stone Wool Insulation. Refer to pages 34-37Max. 200mmBattsCP606 Acrylic Sealant + 1 x 13mm Plasterboard Patch + Mineral Wool Pipe Sleeve (Fibertex 450) 600mm in length-/120/90
Hilti16 - 200mm Dia. Copper, Ferrous (Steel, Stainless Steel, Iron) or Brass Pipe. Refer to pages 34-37Max. 200mmSealantCP606 Acrylic Sealant-/120/-
Hilti16 to 32mm Dia. uPVC Rigid conduit filled with Cables, Fiber Optics or mixture of both. Refer to pages 15-17Max. 32mmuPVC, CableCFS-C P 50/1.5" Fire Collar + CP606 Acrylic Sealant + CP611a / CFS-IS Intumescent Sealant + 13mm Plasterboard Patch-/120/90
Hilti16 to 50mm Dia. uPVC Rigid conduit (Empty). Refer to pages 15-16Max. 50mmuPVCCFS-C P 50/1.5" Fire Collar + CP606 Acrylic Sealant + CP611a / CFS-IS Intumescent Sealant-/120/60
Hilti16 to 50mm Dia. uPVC Rigid conduit (Empty). Refer to pages 15-17Max. 50mmuPVCCFS-C P 50/1.5" Fire Collar + CP606 Acrylic Sealant + CP611a / CFS-IS Intumescent Sealant + 13mm Plasterboard Patch-/120/90
Hilti16 to 50mm Dia. uPVC Rigid conduit filled with Cables, Fiber Optics or mixture of both. Refer to pages 15-16Max. 50mmuPVC, CableCFS-C P 50/1.5" Fire Collar + CP606 Acrylic Sealant + CP611a / CFS-IS Intumescent Sealant-/120/60
Hilti16mm Dia. PE-X/AL/PE or PE-Xb/AL/PE-Xb. Refer to pages 31-3316mmPE / PEXCP611a / CFS-IS Intumescent Sealant + 13mm Plasterboard Patch & Sealant Cone-/120/90
Hilti16mm Dia. PE-X/AL/PE. Refer to pages 31-3216mmPE / PEXCP611a / CFS-IS Intumescent Sealant-/120/60
Hilti16mm Dia. PE-Xa or PE-Xb. Refer to pages 31-3316mmPE / PEXCP611a / CFS-IS Intumescent Sealant + 13mm Plasterboard Patch & Sealant Cone-/120/120
Hilti16mm Dia. PE-Xa. Refer to pages 31-3216mmPE / PEXCP611a / CFS-IS Intumescent Sealant-/120/90
Hilti20 & 25mm Dia. PP Flexible conduit (Empty). Refer to pages 18-19Max. 25mmCFS-C P 50/1.5" Fire Collar + CP606 Acrylic Sealant + CP611a / CFS-IS Intumescent Sealant-/120/-
Hilti20 & 25mm Dia. PP Flexible conduit filled with Cables, Fiber Optics or mixture of both. Refer to pages 18-19Max. 25mmCableCFS-C P 50/1.5" Fire Collar + CP606 Acrylic Sealant + CP611a / CFS-IS Intumescent Sealant-/120/60
Hilti20 & 25mm Dia. PP Flexible conduit filled with Cables, Fiber Optics or mixture of both. Refer to pages 18-20Max. 25mmCableCFS-C P 50/1.5" Fire Collar + CP606 Acrylic Sealant + CP611a / CFS-IS Intumescent Sealant + 13mm Plasterboard Patch-/120/90
Hilti20 to 50mm Dia. uPVC Flexible conduit (Empty). Refer to pages 18-19Max. 50mmuPVCCFS-C P 50/1.5" Fire Collar + CP606 Acrylic Sealant + CP611a / CFS-IS Intumescent Sealant-/120/-
Hilti20 to 50mm Dia. uPVC Flexible conduit filled with Cables, Fiber Optics or mixture of both. Refer to pages 18-19Max. 50mmuPVC, CableCFS-C P 50/1.5" Fire Collar + CP606 Acrylic Sealant + CP611a / CFS-IS Intumescent Sealant-/120/90
Hilti20 to 50mm Dia. uPVC Flexible conduit filled with Cables, Fiber Optics or mixture of both. Refer to pages 18-20Max. 50mmuPVC, CableCFS-C P 50/1.5" Fire Collar + CP606 Acrylic Sealant + CP611a / CFS-IS Intumescent Sealant + 13mm Plasterboard Patch-/120/120
Hilti20mm Dia. PE-X/AL/PE or PE-Xb/AL/PE-Xb. Refer to pages 31-3320mmCP611a / CFS-IS Intumescent Sealant + 13mm Plasterboard Patch & Sealant Cone-/120/90
Hilti20mm Dia. PE-X/AL/PE. Refer to pages 31-3220mmCP611a / CFS-IS Intumescent Sealant-/120/60
Hilti20mm Dia. PE-Xa or PE-Xb. Refer to pages 31-3320mmCP611a / CFS-IS Intumescent Sealant + 13mm Plasterboard Patch & Sealant Cone-/120/120
Hilti20mm Dia. PE-Xa. Refer to pages 31-3220mmCP611a / CFS-IS Intumescent Sealant-/120/90
Hilti25mm Dia. PE-X/AL/PE or PE-Xb/AL/PE-Xb. Refer to pages 31-3325mmCP611a / CFS-IS Intumescent Sealant + 13mm Plasterboard Patch & Sealant Cone-/120/90
Hilti25mm Dia. PE-X/AL/PE. Refer to pages 31-3225mmCP611a / CFS-IS Intumescent Sealant-/120/60
Hilti25mm Dia. PE-Xa or PE-Xb. Refer to pages 31-3325mmCP611a / CFS-IS Intumescent Sealant + 13mm Plasterboard Patch & Sealant Cone-/120/120
Hilti25mm Dia. PE-Xa. Refer to pages 31-3225mmCP611a / CFS-IS Intumescent Sealant-/120/90
Hilti32mm Dia. PE-X/AL/PE. Refer to pages 31-3232mmCP611a / CFS-IS Intumescent Sealant-/120/60
Hilti32mm Dia. PE-X/AL/PE. Refer to pages 31-3332mmCP611a / CFS-IS Intumescent Sealant + 13mm Plasterboard Patch & Sealant Cone-/120/90
Hilti40mm ND uPVC Pipe. Refer to pages 28-3040mmuPVCCFS-C P 50/1.5" Fire Collar + CP606 Acrylic Sealant-/120/60
Hilti40mm ND uPVC Pipe. Refer to pages 28-3040mmuPVCCFS-C P 50/1.5" Fire Collar + CP606 Acrylic Sealant + 13mm Plasterboard Patch-/120/90
Hilti50mm ND uPVC Pipe. Refer to pages 28-3050mmuPVCCFS-C P 63/2.0" Fire Collar + CP606 Acrylic Sealant-/120/90
Hilti50mm ND uPVC Pipe. Refer to pages 28-3050mmuPVCCFS-C P 63/2.0" Fire Collar + CP606 Acrylic Sealant + 13mm Plasterboard Patch-/120/120
Hilti65mm ND uPVC Pipe. Refer to pages 28-3065mmuPVCCFS-C P 75/2.5" Fire Collar + CP606 Acrylic Sealant-/120/90
Hilti65mm ND uPVC Pipe. Refer to pages 28-3065mmuPVCCFS-C P 75/2.5" Fire Collar + CP606 Acrylic Sealant + 13mm Plasterboard Patch-/120/120
Hilti80mm ND uPVC Pipe. Refer to pages 28-3080mmuPVCCFS-C P 90/3" Fire Collar + CP606 Acrylic Sealant-/120/90
Hilti80mm ND uPVC Pipe. Refer to pages 28-3080mmuPVCCFS-C P 90/3" Fire Collar + CP606 Acrylic Sealant + 13mm Plasterboard Patch-/120/120
HiltiCable Bundle ≤ 36mm Dia. Any combination of Telecommunication cables, Cat5/6/7/8, Fiber Optic cables,RG6 Quad Shield Coax or TPS 2C+E up to 2.5mm2. Refer to pages 13-14Max. 36mmCableCP611a / CFS-IS Intumescent Sealant-/120/60
HiltiCable Bundle ≤ 36mm Dia. Any combination of Telecommunication cables, Cat5/6/7/8, Fiber Optic cables,RG6 Quad Shield Coax or TPS 2C+E up to 2.5mm2. Refer to pages 13-14Max. 36mmCableCP611a / CFS-IS Intumescent Sealant + CFS-P BA Putty Bandage-/120/90
HiltiCable Tray up to 600mm Wide with 9 x 400mm2 XLPE/PVC or PVC/PVC Sheath/Insulated Single Core Copper or Aluminum Power Cables. Refer to pages 21-27Cable2 x Layers CP670 Coated Board + CP611a / CFS-IS Intumescent Sealant + CFS-P BA Putty Bandage-/60/60
HiltiCable Tray up to 600mm Wide with AS1530.4 Standard D1 XLPE/PVC or PVC/PVC Sheath/Insulated Power Cables Cable Sets. Refer to pages 21-27Cable2 x Layers CP670 Coated Board + CP611a / CFS-IS Intumescent Sealant + CFS-P BA Putty Bandage-/120/90
HiltiCable Tray up to 600mm Wide with AS1530.4 Standard D2 Telecommunication Cable Sets. Refer to pages 21-27Cable2 x Layers CP670 Coated Board + CP611a / CFS-IS Intumescent Sealant + CFS-P BA Putty Bandage-/90/60
HiltiUp to 10 of Quad Shield Coax Cables. Refer to pages 13-14CableCP611a / CFS-IS Intumescent Sealant + CFS-P BA Putty Bandage-/120/90
HiltiUp to 16 of Telecommunication cables, Cat5/6/7/8 & Fiber Optic cables. Refer to pages 13-14CableCP611a / CFS-IS Intumescent Sealant-/120/90
HiltiUp to 16 of Telecommunication cables, Cat5/6/7/8 & Fiber Optic cables. Refer to pages 13-14CableCP611a / CFS-IS Intumescent Sealant + CFS-P BA Putty Bandage-/120/120
HiltiUp to 8 of TPS 2C+E up to 2.5mm2. Refer to pages 13-14CP611a / CFS-IS Intumescent Sealant-/120/60
HiltiUp to 8 of TPS 2C+E up to 2.5mm2. Refer to pages 13-14CP611a / CFS-IS Intumescent Sealant + CFS-P BA Putty Bandage-/120/90
Read more
Installation

Installation

Slide 1

KOROK® Installation

Flexible Installation Options with Expert Support and Step-by-Step Guidance

Fast, Simple Installation with Nationwide Support

KOROK® is simple to install. You can get an installer group to do it for you – there are several installer groups around the country – or, if you’d like to install it yourself, we are very happy to offer free on-site training (subject to location). For more information on either option please contact us on 0800 773 777 or at info@korok.com.

We also have comprehensive installation guides for each and every KOROK® wall system. You can print these below, or contact us if you’d like us to send you hard copies.

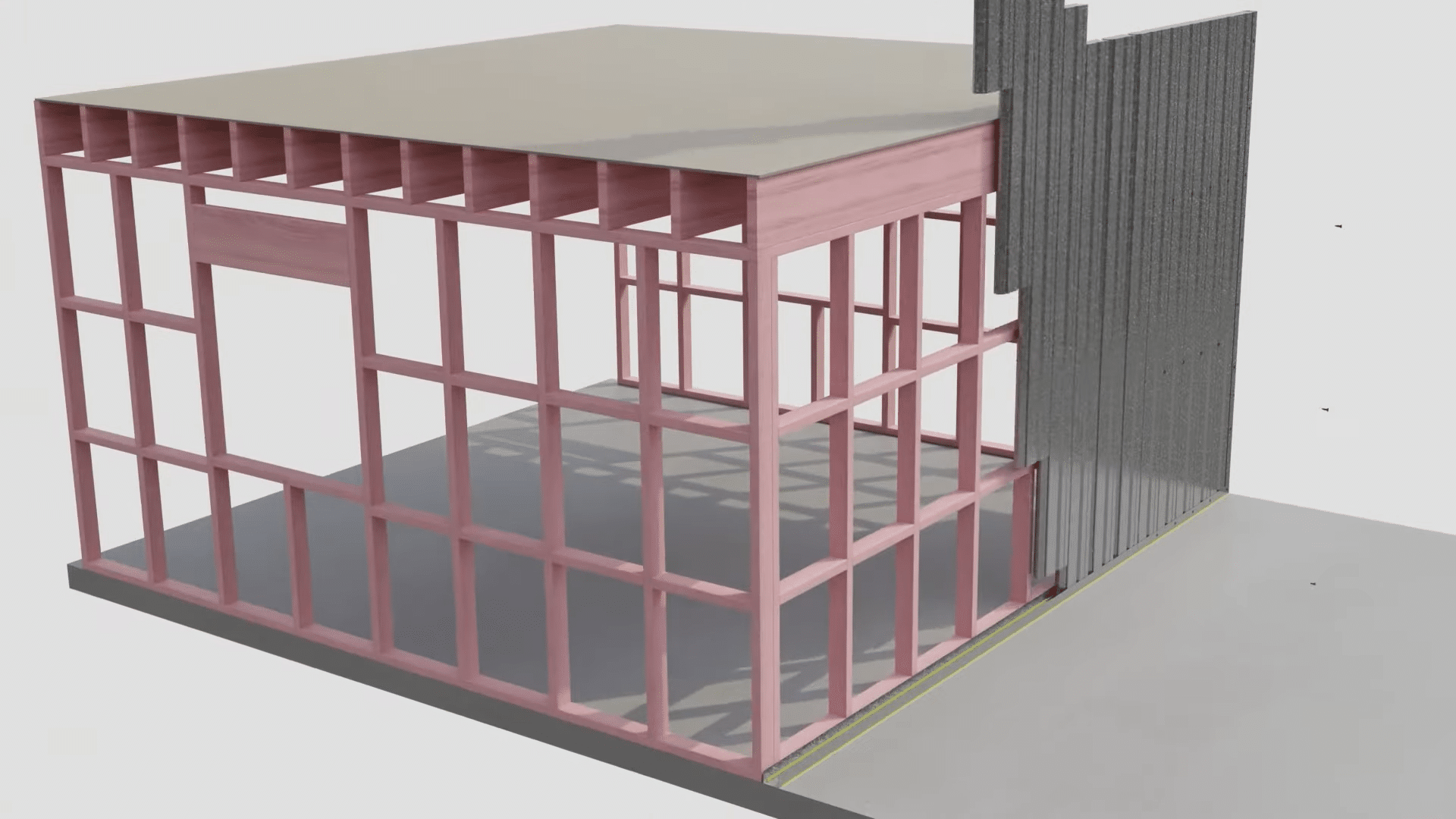

KOROK® wall systems can be installed either vertically or horizontally, with clear steps to ensure a secure and high-performance outcome. Key steps include sealing the C-track with fire-rated sealant, precise cutting of panels, and correct placement using a tilt-and-snap action to lock panels together. Panels are fixed with screws at specified centres, and sealant is applied to maintain fire and acoustic integrity. Detailed guidance is provided for handling the last panels and ensuring proper finishing.

For full installation details, refer to the comprehensive guides below or contact us for support.

Installation Manuals

KOROK® Intertenancy Terraced Housing Systems Installation Guide
KOROK® Intertenancy Terraced Housing Systems Installation Guide
KOROK® Intertenancy Apartment Systems Installation Guide
KOROK® Intertenancy Apartment Systems Installation Guide
KOROK® External Systems Installation Guide
KOROK® External Systems Installation Guide
KOROK® Warehouse and Retail Systems Installation Guide
KOROK® Warehouse and Retail Systems Installation Guide
KOROK Technical & Installation Manual
KOROK® Technical & Installation Manual
KOROK® Ceiling and Bulkhead Systems Manual v3
KOROK® Ceiling and Bulkhead Systems Manual
KOROK® Ceiling Access Panel Installation Guide
KOROK® Ceiling Access Panel Installation Guide

Installation Animations and Videos

These animations are for illustrative purposes only.  Please refer to the appropriate KOROK Systems Manual for complete and current installation instructions.

KOROK 51mm Terraced Housing Intertenancy Wall

KOROK 78mm Terraced Housing Intertenancy Wall

Installation of KOROK® Warehouse and Retail Systems – Vertical Installation

Installation of KOROK® Warehouse and Retail Systems – Horizontal Installation

KOROK® Warehouse time-lapse installation video

KOROK® Panel Handling and Unloading

Read more
