At KOROK, we’re proud to have contributed to 90 Devonport Road—a pioneering project that now holds the title of New Zealand’s largest mass timber office building. Designed by Warren and Mahoney and developed by Willis Bond in partnership with Tauranga City Council, this landmark project redefines what’s possible for sustainable commercial construction in Aotearoa.
As part of the build, 78mm KOROK® fire and acoustic rated panels were specified and installed for external wall applications, contributing to the project’s high-performance envelope while supporting the mass timber structure with lightweight, resilient protection. Installed by Tika Interiors Limited, our panels were chosen for their proven reliability, fast installation time, and ability to support sustainable outcomes without compromising safety or acoustic control.
The goal was ambitious—a 100% reduction in embodied carbon, with a design targeting a 6 Star Green Star rating (the highest possible), alongside NABERSNZ and WELL Building Standard benchmarks. The result? A building that not only showcases natural beauty through its exposed timber columns and warm finishes, but one that’s genuinely future-ready.
By prioritising timber and selecting high-performance materials like KOROK®, the project team avoided designing in unnecessary complexity or carbon-intensive solutions. This thoughtful approach resulted in a cost-neutral, repeatable commercial model that leads the charge for the next generation of green buildings in New Zealand.
Building for People and Performance
Built by LT McGuinness, this 10,400sqm building now brings together the entire Tauranga City Council administration team under one roof for the first time since 2014. The space fosters collaboration, connection, and a shared commitment to a sustainable future.
“We wanted to push the boundaries to design a wholly sustainable, future-focused workplace which maximises the use of natural materials such as the exposed timber columns which celebrate the uniqueness of the building.” — Anne Tolley, Chair of the Commission
KOROK’s Role
KOROK’s lightweight fire and acoustic rated wall systems have been engineered to complement mass timber construction by reducing structural loads, supporting acoustic separation, and accelerating installation programs. On a project of this size and vision, our 78mm panels provided the performance needed without compromising the environmental goals or design integrity.
As advocates for sustainable innovation in construction, we are proud to see our systems play a role in delivering landmark projects like 90 Devonport Road. It’s another example of how the KOROK system supports smarter, safer, and more sustainable buildings.
KOROK Systems used in this project
External Wall System
KOROK® External Wall Systems provide a comprehensive solution for fire-rated, acoustic-rated, and weatherproof protection in external applications, including boundary walls. These all-in-one systems are designed for New Zealand’s unique environmental conditions, offering superior fire resistance, sound insulation, and weatherproofing with a fast and cost-effective installation process.
Glasshouse Morningside is a unique, urban oasis nestled in the heart of Auckland, offering a serene and elegant venue for a variety of events. As part of the evolving Morningside Precinct, Glasshouse contributes to the area’s dynamic and curated character, blending contemporary architecture with a mix of vibrant businesses. Designed to host everything from weddings and private parties to corporate functions and photoshoots, Glasshouse provides an unparalleled event space defined by its striking glass walls and lush greenery.
To ensure the durability, safety, and acoustic integrity of this unique venue, 78mm KOROK panels were selected as the core external wall system solution. KOROK’s fire-rated and acoustic-rated panels played a crucial role in maintaining the building’s aesthetic while offering high-performance protection against fire, noise, and external weather conditions.
Key Features of KOROK External Wall Systems in Glasshouse Morningside
Fire-Rated & Weatherproof Protection
Glasshouse Morningside required external walls that met stringent fire safety requirements while also standing up to New Zealand’s diverse weather conditions. KOROK External Wall Systems provided a high-performing, fire-resistant solution that ensured both occupant safety and long-term durability.
Lightweight & Cost-Effective Installation
With no need for engineered slabs, KOROK’s lightweight panel system significantly reduced material costs and installation time. This efficiency enabled the construction team to maintain the project timeline without sacrificing quality or structural integrity.
Seamless Acoustic Performance
As a venue designed for events and gatherings, controlling sound was a crucial consideration. KOROK’s acoustic-rated panels ensured effective sound insulation, preventing noise disruptions and enhancing the intimate atmosphere of the space.
Durability Without Additional Cladding
Designed specifically for high-wind zones and exposed external applications, KOROK’s panels eliminated the need for extra cladding, reducing maintenance costs while maintaining a sleek architectural finish that complemented the venue’s glass-wall aesthetic.
Conclusion
The Glasshouse Morningside stands as a testament to the versatility and performance of KOROK External Wall Systems. By providing a lightweight, fire-resistant, and acoustically efficient solution, KOROK played an integral role in shaping this iconic Auckland venue. Our systems continue to set the standard for modern construction, offering architects and builders a practical yet high-performing solution for external wall applications.
For more information about our External Wall Systems and how KOROK can enhance your next project, visit our website or get in touch with our team today.
KOROK Systems used in this project
External Wall Systems
KOROK® External Wall Systems provide a comprehensive solution for fire-rated, acoustic-rated, and weatherproof protection in external applications, including boundary walls.
Honey NZ: Cost Saving and Lightweight, KOROK External Walls Systems
If you’re passing Hamilton Airport, take a glance across the road, and you’ll spot Honey New Zealand’s stunning new buildings, constructed by Steel Shed Systems. Honey NZ, renowned for producing some of New Zealand’s finest Pure Manuka Honey, has grown into one of the country’s leading independently-owned Manuka honey exporters. With a history dating back to 1909, the company has built a reputation for high-quality products, rigorously tested to ensure authenticity and premium UMF levels. Honey NZ distributes across New Zealand and exports to Australia, the USA, and the UK.
KOROK Systems in Use at Honey NZ For this project, Honey NZ’s facilities were constructed using the 78mm KOROK external wall panels, which provide excellent fire, acoustic, and weather protection. KOROK panels, known for their lightweight yet durable design, were a perfect fit for Honey NZ’s modern expansion.
Why KOROK Panels?
Cost-Effective: KOROK systems provide a cost-saving solution due to their fast and efficient installation process, reducing overall build time.
Lightweight Design: The lightweight construction of the 78mm KOROK panels allowed for easier handling on-site, contributing to faster installation and less labor-intensive work.
Fire and Acoustic Performance: The KOROK external wall system ensures premium fire resistance and acoustic performance, key features for Honey NZ’s new state-of-the-art facility.
Weather Protection: Specifically designed for external applications, including boundary walls, KOROK panels provide reliable weather protection, an essential consideration in New Zealand’s varying climate.
By choosing KOROK’s External wall systems, Honey NZ not only achieved high-performance standards but also enhanced the longevity of their building, ensuring protection and functionality for years to come. Whether you’re constructing commercial or industrial buildings, KOROK’s external wall systems are the ideal choice for superior fire, acoustic, and weather protection.
KOROK Systems used in this project
External Wall Systems
KOROK® External Wall Systems are all-in-one wall solutions for fire, acoustic and weather protection for external applications, including boundary walls.
Designing cantilevered terraced houses is simplified with KOROK® fire and acoustic wall systems. Whether you need cantilevered eaves or cantilevered walls, KOROK has detailed solutions to suit your needs.
Our systems help you create functional and stylish designs, such as:
Weather protection with inset front doors for enhanced shelter.
Maximizing floor space with larger second-story extensions.
KOROK’s innovative cantilevered wall systems are engineered to provide superior performance, offering both structural stability and efficient installation for terraced house construction. Choose KOROK® to streamline your building process and meet the demands of modern architectural design.
For Terraced Housing

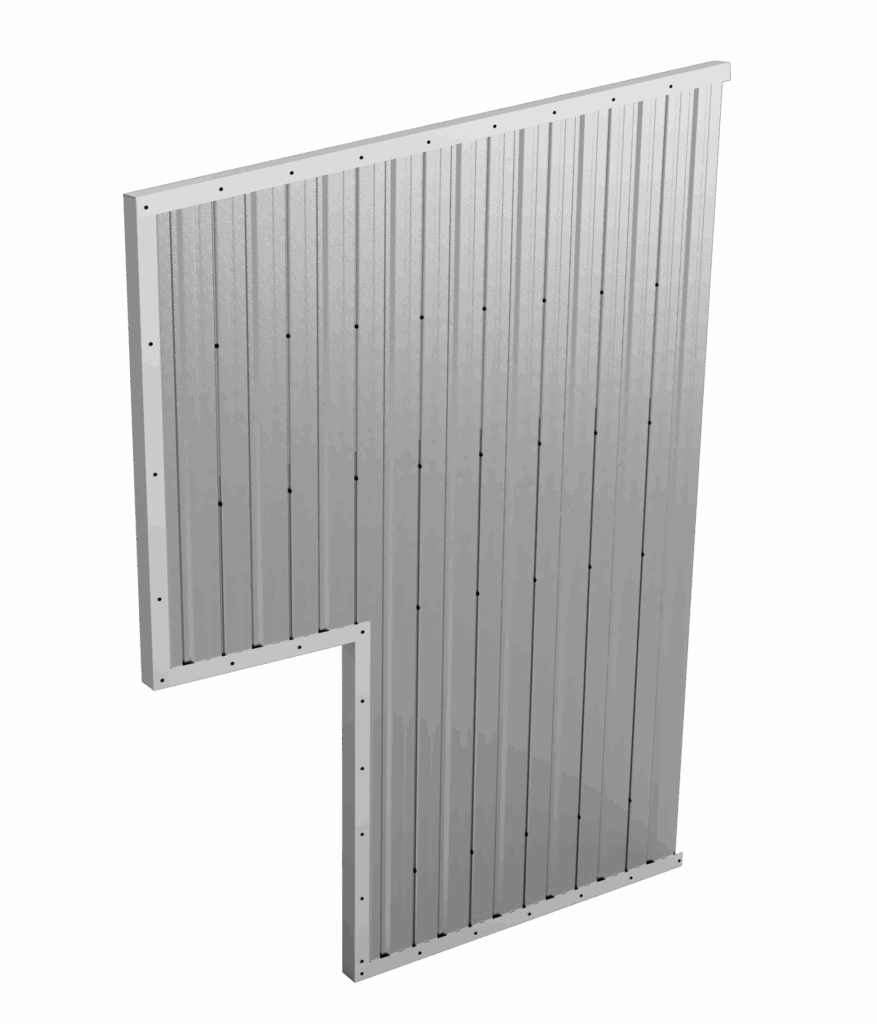

Cantilevered terraced house design is easy with KOROK®. We have details for both cantilevered eaves and cantilevered walls. So if you’re wanting your buyers to be sheltered from the weather with an inset front door; or if you’re wanting to maximise your floor space with a larger second storey, we have the product to make that happen.
Cantilevered Eaves
Cantilevered Walls
For External Applications
A Typical Parapet Detail illustrates the structure and support of a parapet wall, commonly cantilevered from the main building structure. This detail focuses on connections that ensure stability and durability, including reinforcement and weatherproofing layers to protect against the elements. Cantilevered parapets require careful attention to load distribution and deflection control, as they extend outward without external bracing, creating a clean, streamlined edge on the building façade.
KOROK® 78mm galv panels are rollformed from zinc coated steel strips. The steel from which the shells are manufactured conforms to AS/NZS1397:2001. Steel shells have a base metal thickness of 0.4mm B.M.T. with a Z275 zinc coating. These panels have an aerated concrete core and weigh nominally 10.2kg per lineal metre.
High-Performing and Lightweight Panels for Superior Building Solutions
The 78mm KOROK® panels are engineered to provide exceptional performance in both fire and acoustic applications. These panels are roll-formed from high-quality COLORSTEEL® steel strips, with the steel conforming to the rigorous AS/NZS1397:2001 standard.
The combination of steel shells and an aerated concrete core ensures outstanding durability and functionality. Weighing approximately 10.2kg per lineal metre, these panels offer a lightweight solution that does not compromise on strength or safety.
Applications of 78mm KOROK® Colour Panels
Our 78mm KOROK® colour panels are versatile and suitable for various building applications, including:
KOROK® External Wall Systems: Ensuring robust protection with excellent thermal, acoustic, and fire-rated properties.
Lightweight Construction: Simplifies installation and reduces structural load requirements.
Durability: Engineered to withstand demanding conditions.
Efficiency: Panels are pre-finished and easy to install, reducing construction time and costs.
Transition to COLORSTEEL® MAXAM™
In our commitment to innovation and sustainability, we are transitioning to the advanced COLORSTEEL® MAXAM™, replacing the previous COLORSTEEL® ENDURA® and COLORSTEEL® MAXX® ranges. This transition represents a significant technological advancement, enhancing the performance and longevity of our wall systems. COLORSTEEL® MAXAM™ is designed to offer superior resistance to New Zealand’s diverse environmental conditions, making it an ideal choice for a wide range of applications.
Fire and Acoustic Rated Protection for Warehouses, Retail, and Factories
Why Choose KOROK® for Warehouses, Retail, and Factories?
Fire-Rated Protection: KOROK® panels ensure your facility complies with stringent fire safety regulations, providing peace of mind for your warehouse, bulk retail, or industrial space.
Acoustic Insulation: Maintain a quieter workspace by using our walls, which are engineered to minimize noise transfer, ideal for factories and retail centers where sound control is critical.
Versatile and Reconfigurable:Our systems are highly adaptable and can be easily dismantled and relocated without compromising fire or acoustic performance, perfect for future layout changes in dynamic retail or industrial environments.
Durable and Reflective: The standard KOROK® panel comes with a reflective surface that, when left unlined, enhances workplace safety by improving interior brightness. Alternatively, KOROK® can be supplied in Colorsteel® finishes to match your design aesthetic.
KOROK® offers high-performance fire and acoustic-rated wall systems tailored for warehouses, retail spaces, and factories. Our solutions provide robust, secure, and fire-compliant separation walls that also deliver superior noise insulation, meeting the needs of high-traffic and high-decibel environments.
The internal side lined with 1 layer 19mm GIB Fyreline® or acceptable GIB® alternatives or 2 layers 10mm GIB Fyreline® or acceptable GIB® alternatives.
Longrun profiled steel cladding system as selected.
The internal side lined with 1 layer 19mm GIB Fyreline® or acceptable GIB® alternatives or 2 layers 10mm GIB Fyreline® or acceptable GIB® alternatives. Longrun profiled steel cladding system as selected
1 layer 10mm GIB® Standard plasterboard or equivalent each side
Acoustic insulation must be either Autex GreenStuf SW90 or Pink Batts R 2.2 each side.
KOROK® metal fire flashing is installed to the top C-track.
KOROK® metal KIT flashing is installed to horizontal joints.
90mm steel or timber frame each side
86mm overall. Framing not to touch KOROK® panel or fire flashing
KOROK® metal fire flashing is installed to the top C-track. KOROK® metal KIT flashing is installed to horizontal joints.
1 layer 10mm GIB® Standard plasterboard or equivalent each side
Acoustic insulation must be either Autex GreenStuf SW90 or Pink Batts R 2.2 each side.
KOROK® metal fire flashing is installed to the top C-track.
KOROK® metal KIT flashing is installed to horizontal joints.
90mm steel or timber frame each side
80mm overall. Framing not to touch KOROK® panel or fire flashing
KOROK® metal fire flashing is installed to the top C-track. KOROK® metal KIT flashing is installed to horizontal joints.
KOROK® metal fire flashing is installed to the top C-track OR 13 mm GIB Fyreline® or equivalent x 120 mm strip with sealant is fixed at 250 mm centres top and bottom, using 6g x 32 mm drywall screws.
Fire and Acoustic Rated Protection for External Wall Systems
KOROK® External Wall Systems provide a comprehensive solution for fire-rated, acoustic-rated, and weatherproof protection in external applications, including boundary walls. These all-in-one systems are designed for New Zealand’s unique environmental conditions, offering superior fire resistance, sound insulation, and weatherproofing with a fast and cost-effective installation process.
Key Benefits of KOROK® External Wall Systems:
Lightweight & Cost-Effective: Ideal for fire-rated boundary walls in commercial buildings, KOROK® systems reduce material costs and installation time.
No Engineered Slab Required: Save on construction costs by avoiding the need for specially engineered slabs, leading to significant cost savings and programme advantages.
Easy Installation: With no need for cranes or heavy lifting equipment, a small team can manage the installation process, streamlining construction.
Weather-Tight & Durable: Specifically designed for New Zealand’s high-wind zones and external conditions, KOROK® systems don’t require additional cladding to ensure long-lasting durability.
Fire & Acoustic Efficiency: Enhance fire protection and soundproofing without the need for extra internal framing, making these systems both practical and efficient.
Choose from a full range of COLORSTEEL® options to match your project’s external design.
Explore our CAD Library for DWG files related to KOROK® External Wall Systems.
Access detailed KOROK® External Systems Literature for specifications, installation guides, and more. If you have any questions or need further assistance, contact us for more information.
The internal side lined with 1 layer 19mm GIB Fyreline® or acceptable GIB® alternatives or 2 layers 10mm GIB Fyreline® or acceptable GIB® alternatives.
Longrun profiled steel cladding system as selected.
The internal side lined with 1 layer 19mm GIB Fyreline® or acceptable GIB® alternatives or 2 layers 10mm GIB Fyreline® or acceptable GIB® alternatives. Longrun profiled steel cladding system as selected
1 layer 10mm GIB® Standard plasterboard or equivalent each side
Acoustic insulation must be either Autex GreenStuf SW90 or Pink Batts R 2.2 each side.
KOROK® metal fire flashing is installed to the top C-track.
KOROK® metal KIT flashing is installed to horizontal joints.
90mm steel or timber frame each side
86mm overall. Framing not to touch KOROK® panel or fire flashing
KOROK® metal fire flashing is installed to the top C-track. KOROK® metal KIT flashing is installed to horizontal joints.
1 layer 10mm GIB® Standard plasterboard or equivalent each side
Acoustic insulation must be either Autex GreenStuf SW90 or Pink Batts R 2.2 each side.
KOROK® metal fire flashing is installed to the top C-track.
KOROK® metal KIT flashing is installed to horizontal joints.
90mm steel or timber frame each side
80mm overall. Framing not to touch KOROK® panel or fire flashing
KOROK® metal fire flashing is installed to the top C-track. KOROK® metal KIT flashing is installed to horizontal joints.
KOROK® metal fire flashing is installed to the top C-track OR 13 mm GIB Fyreline® or equivalent x 120 mm strip with sealant is fixed at 250 mm centres top and bottom, using 6g x 32 mm drywall screws.
